How to size a PDU?

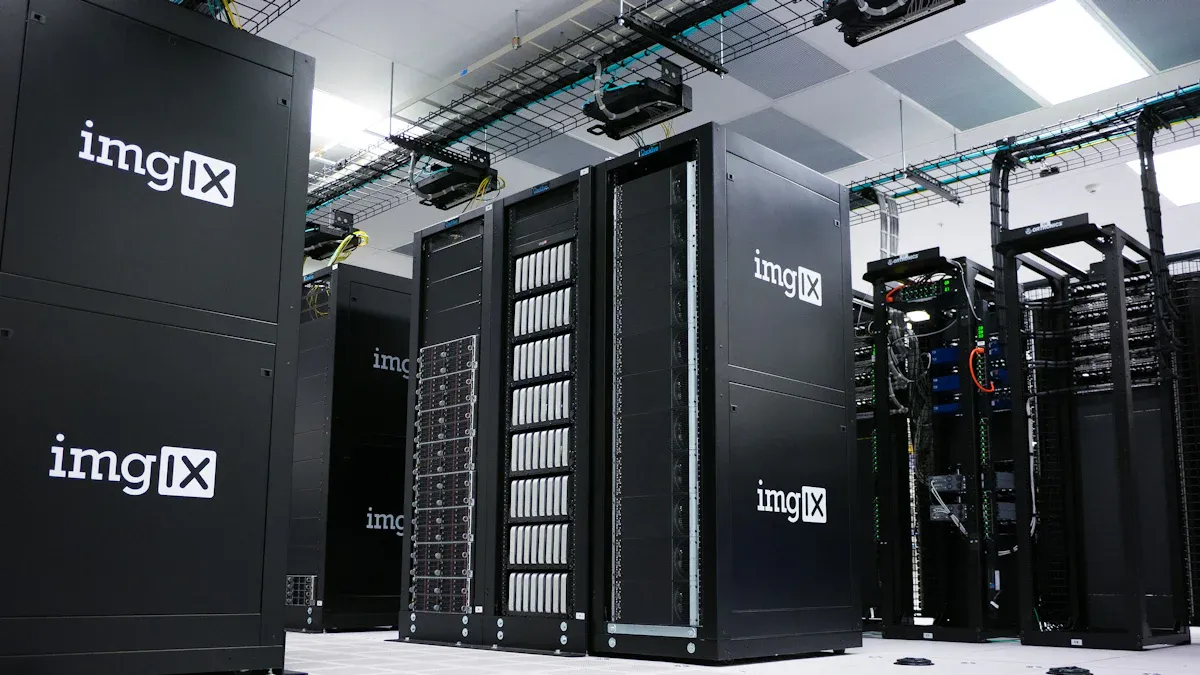

Accurate PDU sizing keeps equipment safe and reliable. Data centers now face a 50% rise in global power demand by 2027, driven by expanding server rooms. When selecting a 220V PDU, smart planning helps meet both current needs and future increases in power requirements.

Key Takeaways

• Start by listing all equipment and measuring their real power use to size the PDU accurately and avoid mistakes.
• Add a 20% safety margin to the total power to handle surges and future growth, keeping the system reliable and safe.
• Choose a PDU that matches your power source, outlet types, and rack space, and consider advanced features for better control and monitoring.

Calculate Power Requirements

Inventory All Equipment

Accurate PDU sizing starts with a complete inventory of all devices that will connect to the power distribution unit. Each piece of equipment, such as servers, switches, and storage devices, draws a specific amount of power. Technicians often make mistakes during this phase.

Common mistakes include:

• Relying only on nameplate power values, which can lead to oversizing.
• Ignoring actual current draw under real operating conditions.
• Overlooking startup surges or simultaneous equipment startups, which can cause underestimating power needs.
• Failing to consider failure scenarios, such as when half of the power supplies fail and the remaining ones must handle the full load.
• Not using power measurement tools or vendor recommendations, which provide more accurate data than theoretical maximums.
• Forgetting that some servers can stagger their startup power draw, which helps manage peak loads.

A thorough inventory uses real measurements whenever possible. Clamp meters or built-in monitoring tools give a more accurate picture than just reading labels. This step ensures the PDU will support all connected devices without risk.

Convert and Sum Power Ratings

After listing all equipment, the next step is to convert their power ratings to a common unit. Equipment labels may show power in VA (volt-amperes), kVA (kilovolt-amperes), or MVA (megavolt-amperes). VA represents the product of voltage and current. kVA equals 1,000 VA, and MVA equals 1,000,000 VA. To compare or sum these ratings, convert all values to the same unit. For example, divide kVA by 1,000 to get MVA, or multiply MVA by 1,000 to get kVA.

Calculating kVA from voltage and current values ensures consistency. Summing only after converting all ratings prevents errors and gives a clear total power requirement. In some cases, such as audio equipment, power may be listed in dBu. Keeping all ratings in the same unit, like dBu, avoids confusion and ensures accuracy.

Add a Safety Margin

Sizing a PDU requires more than just matching the total power draw. Industry standards recommend a 20% safety margin.

• This margin acts as a buffer for unexpected surges and additional loads.
• Keeping the load below 80% of the PDU’s rated capacity reduces the risk of overloading and extends equipment lifespan.
• The 20% margin is a best practice for reliable and safe operation.

Tip:

Adding a safety margin improves reliability. Insufficient PDU capacity can cause disruptions and force early upgrades. Lack of scalability limits flexibility and complicates adding new equipment. Choosing a PDU with just enough capacity today may require replacement as needs grow. Poor power planning leads to downtime, equipment damage, and higher costs. Selecting a PDU with capacity beyond current load provides room for growth and avoids costly changes.

For example, if the total equipment load is 80 kW, selecting a PDU rated at 100 kW allows for future expansion and prevents overloads. This approach ensures the PDU operates without stress, improving dependability and uptime.

Select the Right 220V PDU

Match Input Power and Plug Type

Selecting the correct input power and plug type ensures safe and reliable operation of a 220V PDU. Most commercial server racks use a 208V or 220V single-phase power feed at 30A. This setup supports higher server densities and improves efficiency compared to 120V systems. Data centers often recommend using only up to 80% of the circuit’s capacity to avoid tripping breakers and maintain safety.

In North America, NEMA connectors serve as the standard for 220V PDU applications. These connectors come in various types, with higher voltage ratings and locking mechanisms for added safety. In Europe, the Schuko plug system (Type F) and its variants, such as CEE 7/4 and CEE 7/7, are most common. Type E plugs appear in countries like France and Belgium. Many modern PDUs also support a wide voltage range, making them compatible with both North American and European standards.

Tip:

Always confirm that the PDU’s input plug matches the facility’s power source. Locking plugs help prevent accidental disconnections, which improves reliability in busy server environments.

When matching input power and plug type, consider the following:

• Assess the plug types and power ratings of all connected equipment.
• Select outlet types (IEC C13, C19, NEMA) that match equipment plugs.
• Confirm voltage and phase compatibility with the power source.
• Ensure the PDU’s input plug matches the facility’s power source plug type and voltage.
• Verify certifications such as UL, CE, and RoHS for safety and compliance.
• Plan for redundancy and load balancing by using dual power inputs if needed.

Choose Outlet Quantity and Type

A 220V PDU must have enough outlets to power every device in the rack, with extra outlets for future expansion. The number of outlets should at least match the number of devices, but it is wise to include a few more for cooling fans, lights, or new equipment. Some devices may require multiple plugs or have unique power needs.

PDUs offer a variety of outlet types, such as IEC C13, C19, and locking outlets. Matching these outlets to the plugs on your equipment ensures compatibility and reduces the need for adapters. Locking outlets prevent accidental disconnections, which is important in high-traffic data centers. The orientation of outlets—horizontal, vertical, or angled—affects how easily devices connect and how cables are managed.

Note:

Modular PDUs allow for future expansion by letting users add more outlets as needed. This flexibility supports growing server environments.

Decide on Form Factor and Mounting

The form factor and mounting style of a 220V PDU affect how it fits into a rack and how easily it can be managed. There are two main types: horizontal and vertical.

Horizontal PDUs are easy to access and work well in smaller racks or where vertical space is limited. They usually offer 6 to 16 outlets and occupy 1U or 2U of rack space. Vertical PDUs, also called ZeroU PDUs, mount along the side of the rack. They can provide up to 54 outlets, save valuable rack space, and improve cable management and airflow. Vertical mounting is ideal for high-density environments.

Some PDUs offer flexible mounting options, such as 90-degree installation, to optimize cable management and maximize rack space. Universal input features, like those from Legrand, allow for interchangeable power cords, making it easier to adapt to different power requirements worldwide.

Evaluate Advanced Features

Modern 220V PDUs offer advanced features that improve power management, efficiency, and safety. Metered PDUs display local power consumption, helping technicians monitor usage. Monitored PDUs enable remote monitoring and alerting for power usage and potential issues. Switched PDUs allow remote control of individual outlets, making it possible to reboot equipment without physical access.

Intelligent PDUs combine environmental monitoring, outlet-level metering, remote management, and real-time alerts. Integration with Data Center Infrastructure Management (DCIM) systems provides comprehensive power and environmental management. Support for multiple outlet types within a single PDU powers diverse equipment without adapters. Integrated outlet-level locking mechanisms secure power cords and reduce accidental disconnections.

Callout:

Advanced monitoring and remote switching features improve uptime and operational efficiency. Real-time data on power usage, voltage, and temperature enables proactive maintenance and energy optimization.

Other advanced options include:

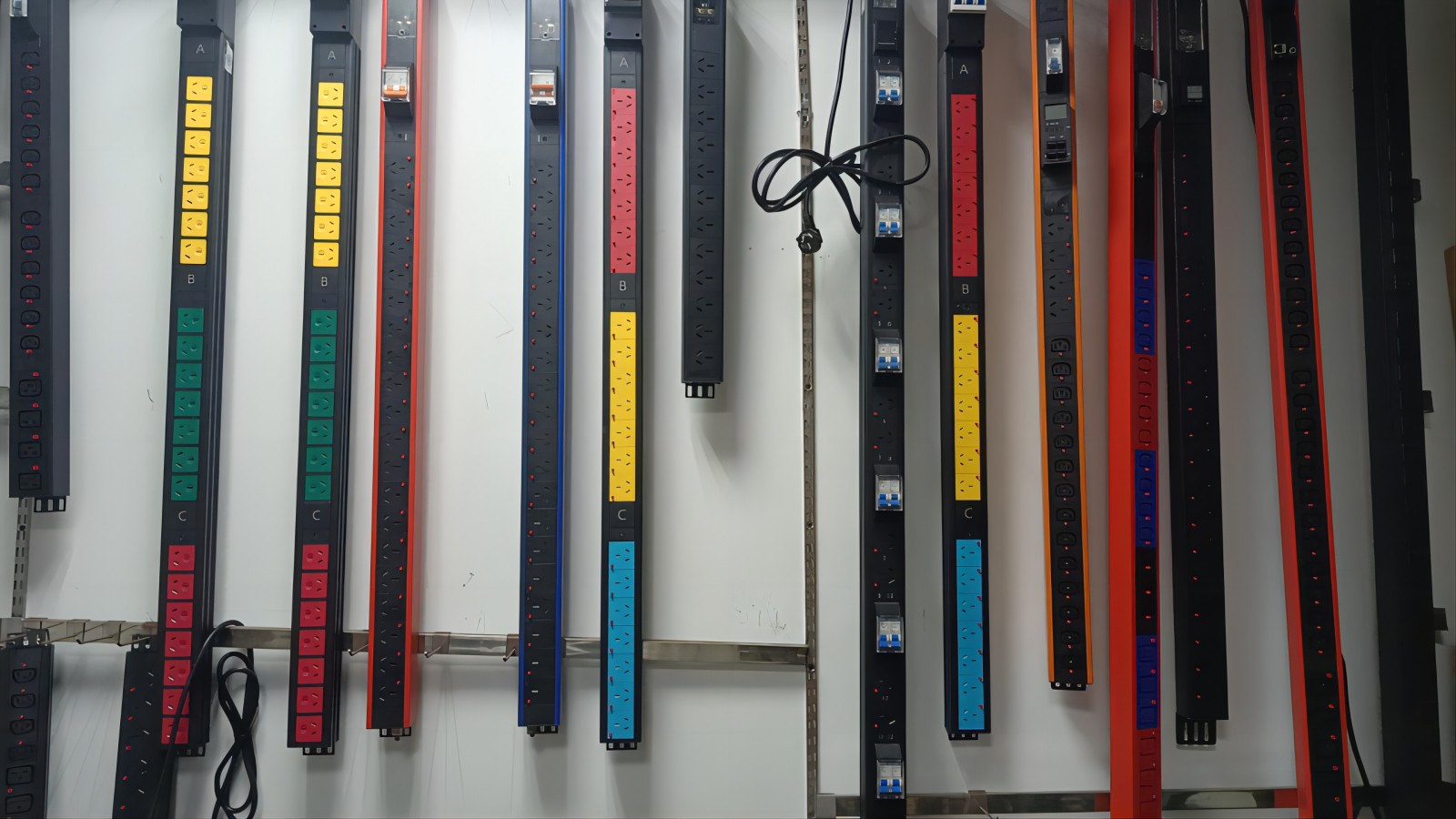

• Color-coded outlets for quick identification and better load balancing.
• High-power capacity PDUs that reduce the number of units per rack and improve cooling.
• Custom PDUs with enhanced harmonic filtering and configurable impedance for fault isolation.
• Features for AI and GPU-heavy workloads, such as high input capacities and improved power quality management.

Selecting a 220V PDU with these advanced features supports reliable operation, scalability, and energy efficiency in modern data centers.

Final Sizing Checklist

Confirm Power Calculations

Accurate power calculations form the backbone of reliable power distribution. Many teams make frequent errors during this step, which can lead to costly downtime or equipment damage.

Common mistakes include:

• Ignoring load imbalances, which may cause equipment failure and waste energy.
• Using incorrect input values, such as voltage, current, or power factor, resulting in inaccurate calculations.
• Overlooking future growth, which risks insufficient capacity as power demand increases.

Best practices help avoid these pitfalls. Teams should use reliable tools, like 3-phase PDU calculators, and regularly review power needs with real-time monitoring. Applying derating factors for temperature or altitude ensures safety. Load balancing across all phases prevents inefficiencies and equipment damage. Consulting with experts, such as electrical engineers, further improves accuracy.

Verify Outlet and Plug Compatibility

Verifying outlet and plug compatibility ensures safe and efficient operation, especially in international environments. IEC 60309 sets global standards for industrial plugs and sockets, covering safety, dimensional interchangeability, and environmental protection.

Different countries use unique plug types, voltages, and safety certifications. For example, the US uses Type A plugs and 110V/60Hz, while Europe uses Type C and 220-240V/50Hz. Plug adapters solve shape mismatches but do not convert voltage, so voltage converters are needed when standards differ.

International standards, such as IEC 60320, IEC 60309, NEMA, and Schuko, govern plug and outlet compatibility. Certifications like UL, CSA, and CE ensure compliance and safety.

Ensure Redundancy and Future Expansion

Redundancy and future expansion planning protect against outages and costly upgrades. Redundant PDUs, dual power inputs, and automatic transfer switching keep equipment running during failures.

Planning for 20-30% extra capacity above current needs allows for growth and prevents overloads. Modular PDUs and monitoring features support easy expansion and reduce downtime.

Focusing only on upfront costs can increase long-term expenses. Investing in redundancy and modularity lowers total ownership costs by reducing maintenance and enabling future upgrades.

Industry experts recommend these steps for sizing a 220V PDU:

1. Calculate total power needs for all devices.
2. Match outlet types and quantities.
3. Confirm compatibility and mounting.
4. Select advanced features.

   Double-checking calculations prevents overloads and downtime. Planning for future growth ensures reliable operation as power demands increase.

FAQ

What is the main difference between a PDU and a UPS?

A PDU distributes power to devices. A UPS provides backup power during outages. Both help protect equipment, but they serve different roles in a data center.

How often should teams review PDU capacity?

Teams should review PDU capacity every six months. Regular checks help prevent overloads and ensure the system supports new equipment.

Can a PDU work with both 120V and 220V equipment?

Some PDUs support both voltages. Always check the specifications. Using the wrong voltage can damage equipment or cause safety issues.
