Many data centers face rack space limitations when deploying new equipment. A vertical PDU mounts along the side of the rack, saving valuable horizontal space for servers and switches. This design supports more outlets without using up rack units. By improving cable organization and offering flexible power options, vertical PDUs help maintain efficient airflow and meet strict safety standards. Their space-saving approach makes them a smart choice for high-density environments.

Key Takeaways

  • Vertical PDUs save valuable rack space by mounting along the rack’s side, freeing up room for more servers and equipment.
  • They support high-density setups with many outlets and high power capacity, meeting the needs of modern data centers.
  • The slim design improves airflow and cooling, reducing overheating risks and lowering energy costs.
  • Organized cabling with vertical PDUs simplifies maintenance, speeds up troubleshooting, and prevents downtime.
  • Built-in safety features and certifications ensure reliable, safe power distribution and help data centers pass audits easily.

Rack Space Optimization with Vertical PDU

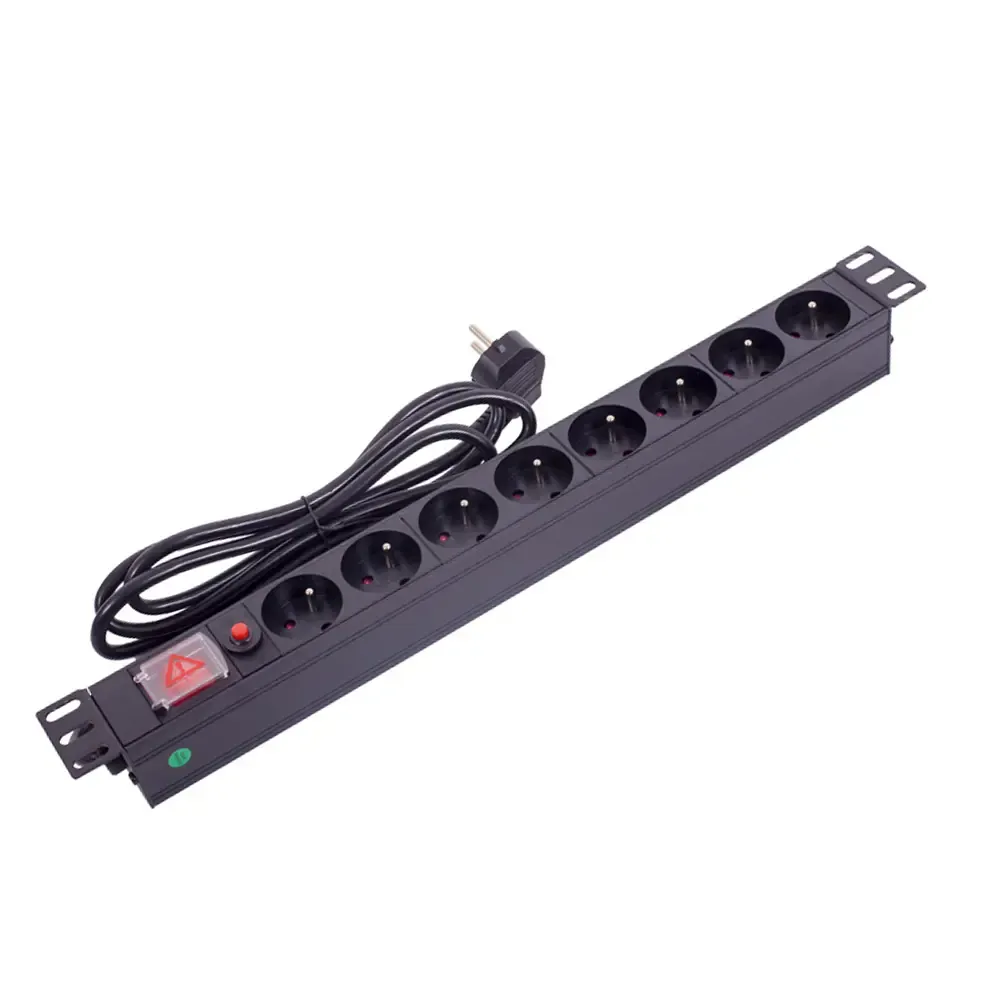

Rack Space Optimization with Vertical PDU

Eliminating Rack Unit Consumption

A vertical PDU mounts in the ‘zero U’ space along the rack’s edge. This placement means it does not take up any rack units (RUs) that IT equipment needs.

  • Vertical PDUs use the vertical space at the back or side of the rack, leaving all horizontal rack units open for servers, switches, and storage devices.
  • Traditional horizontal PDUs, in contrast, occupy 1U or 2U of valuable rack space, which limits the number of devices that can fit in a rack.
  • The ultra-low-profile design of a vertical PDU frees up space and improves airflow, making it easier to add more equipment as needs grow.

Vertical PDUs often measure as little as 2 inches wide and deep. This compact size allows installation in tight spaces that horizontal PDUs cannot use. By mounting along the rack’s edge, these units increase the usable rack space for IT equipment. Data centers can maximize every inch of their racks, which is critical in high-density environments.

Supporting High-Density Equipment

Modern data centers often need to power many devices in a single rack. A vertical PDU supports high-density deployments by offering more outlets and higher power capacities.

  • Many vertical PDUs provide up to 54 outlets, far more than the 8 to 16 outlets found on most horizontal PDUs.
  • These units can deliver power capacities from 10kW to over 57.6kW, with input currents ranging from 16A to over 100A.
  • Some models support up to 90kW and 125A, making them suitable for the most demanding environments.
  • Intelligent features, such as energy metering with ±0.5% accuracy and advanced power quality monitoring, help prevent downtime and ensure efficient operation.
  • Monitoring includes neutral voltage, total harmonic distortion, voltage dips and swells, and circuit breaker trip forensics.

By mounting on the rack’s upright rails, a vertical PDU preserves critical rack unit space for IT equipment. High breaker counts and amperage options allow these PDUs to meet the power needs of dense server deployments. This flexibility supports growth and helps data centers adapt to changing technology.

Enhancing Airflow and Cooling

Efficient cooling is essential in any data center. A vertical PDU helps improve airflow by not blocking rack unit space and by allowing better cable management.

  • The ultra-low-profile design increases airflow efficiency, as it does not obstruct the path of cool air or the exhaust of hot air.
  • Ample space remains at the back of the cabinet for cables and air movement, reducing the risk of hot spots.
  • These PDUs withstand higher temperatures, supporting cooling in racks filled with high-density equipment.
  • Proper cable management, made easier by vertical mounting, prevents airflow blockage and keeps temperatures consistent.
  • Streamlined cables and recessed PDUs allow hot air to flow easily to the back of the rack, improving cooling.
  • Every 1-degree increase in supply temperature can reduce energy consumption by 2-4%, showing the energy-saving impact of better airflow.

Tip: Using blanking panels to cover open rack spaces can further direct cool air and exhaust hot air efficiently, maximizing the benefits of a vertical PDU.

Cable Management Solutions Using Vertical PDU

Streamlined Power Cabling

Data centers achieve organized power cabling by following best practices when installing a vertical PDU. Technicians first assess rack dimensions and power needs to ensure compatibility. They select mounting locations on the rack sides or back panels, which do not block airflow or equipment access. Before installation, they sort and tag all power cables. This step keeps cables orderly and simplifies future maintenance.

After securely mounting the vertical PDU with the correct brackets, technicians connect devices carefully to avoid overloads. They verify all connections and PDU functions after installation.

A few tips help maintain a clean setup:

  • Install vertical PDUs on both sides of the rack to balance power and prevent congestion.
  • Use short power cables, folded and tied with zip ties, to reduce clutter.
  • Connect left-side power supplies to the left PDU and right-side supplies to the right PDU.
  • Avoid horizontal PDUs, which can obstruct equipment and complicate cabling.

Proper labeling of power cables at both ends is essential. Labels should show the source PDU, circuit, and the device being powered. This practice helps staff quickly identify cable origins and destinations.

Reducing Clutter and Airflow Blockage

A vertical PDU features a high number of outlets arranged in staggered or alternating phase configurations. This design reduces cord clutter and simplifies load balancing. The ultra-low-profile form factor minimizes the footprint inside server cabinets, which improves airflow.

Vertical PDUs group outlets at the back of the cabinet, reducing cable congestion and minimizing airflow blockage. Unlike horizontal PDUs, they do not take up equipment mounting space or block ventilation paths.

Organized cables and proper management prevent heat buildup. This reduces equipment stress and the risk of failure. Up to 13% of data center outages link to poor cable management, so keeping cables tidy is critical.

Simplifying Maintenance and Troubleshooting

Well-managed cabling infrastructure makes maintenance easier. Regular inspections and documentation of changes help prevent downtime. Reduced cable clutter allows technicians to trace and access cables quickly, speeding up troubleshooting and repairs.

Vertical PDUs support remote monitoring and control, so IT staff can manage power without being on-site. Features like remote power cycling help reboot devices quickly. Environmental monitoring alerts staff to issues such as overheating, enabling proactive troubleshooting.

Organized cabling lowers maintenance costs and reduces emergency repairs. It also improves safety and supports continuous operation.

Power Flexibility and Scalability with Vertical PDU

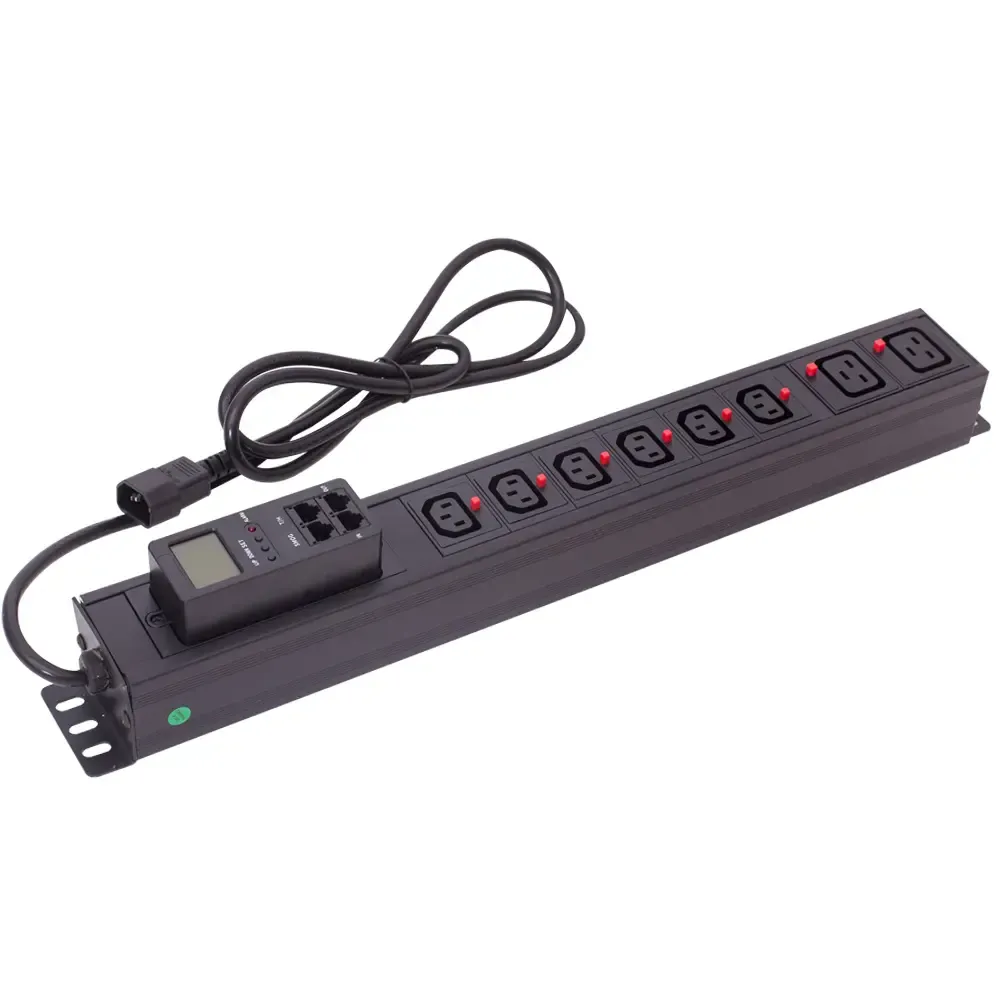

Power Flexibility and Scalability with Vertical PDU

Multiple Outlet Types and Configurations

A vertical PDU offers many outlet types and configurations to meet the needs of different equipment. Data centers can choose from Basic, Metered, Monitored, Switched, and Universal PDUs. Each type supports a range of outlet options, such as standard NEMA plugs and IEC320 connectors. These configurations allow the PDU to handle different voltages and amperages. Some models provide outlet-level monitoring and control, which lets staff manage power for each device remotely. Universal PDUs with detachable cables and multi-voltage support make it easy to use the same unit in different regions. Matching the PDU outlets to the equipment ensures safe and reliable power delivery. Planning for extra outlets helps data centers prepare for future growth.

Redundant Power Paths and Hot-Swappable Components

Redundant power paths in a vertical PDU help keep equipment running even if one power source fails. These PDUs often include dual power inputs and multiple power paths. If one path stops working, the other takes over right away. This design protects sensitive devices and reduces downtime. Some PDUs feature automatic transfer switching, which moves power between sources without any interruption. This level of redundancy is important for data centers that need high uptime. Hot-swappable components, such as network controllers, allow staff to replace or upgrade parts without turning off the PDU. This feature keeps operations smooth and avoids costly outages.

Note: Redundant power paths and hot-swappable parts work together to improve reliability and make maintenance easier.

Adaptability for Future Expansion

A vertical PDU supports future expansion by making it easy to add more power without major changes.

  • It extends power distribution to each rack or cabinet, allowing vertical scaling.
  • It supports higher power densities, which is important for modern computing needs.
  • Three-phase PDUs reduce cable bulk and improve airflow, which helps with cooling.
  • Vertical expansion lets data centers use space more efficiently and save on costs.
  • Custom PDUs with adjustable voltage settings can adapt to new requirements, making upgrades simple.

This adaptability ensures that data centers can grow and change as technology advances.

Compliance and Safety Advantages of Vertical PDU

Meeting International Certifications

Data centers rely on equipment that meets strict international standards. Certified PDUs help ensure safe and reliable power distribution. These certifications show that the product has passed tests for safety, electromagnetic compatibility, and environmental impact. The following table highlights key certifications and their importance:

Certification Description Importance for Data Centers
CE Mark Mandatory for electronic devices sold in the EU, ensuring consumer and workplace safety under the EU Low Voltage Directive. Ensures safety compliance and legal market access in the European Union, critical for reliable and safe power distribution.
IEC CB Scheme International standard recognized by multiple national bodies, covering safety of electronic equipment with standards like IEC 60950-1 and IEC 62368-1. Provides internationally recognized safety certification, reducing trade barriers and ensuring product safety during design, which is vital for data center reliability.
FCC Compliance (Class A) Certification for electromagnetic emissions limits for devices used in business/industrial environments in the US. Prevents electromagnetic interference with other devices, ensuring stable operation of sensitive data center equipment.
UKCA Mark UK conformity mark post-Brexit, similar to CE Mark, mandatory for products marketed in Great Britain. Ensures compliance with UK regulations, maintaining safety and market access in the UK data center market.

Certified PDUs also meet standards like UL and RoHS. These certifications guarantee that the units support safe operation, power monitoring, and control. Data centers benefit from improved management, lower costs, and reduced risk of power failures.

Built-in Safety Features and Surge Protection

Manufacturers design PDUs with advanced safety features to protect both equipment and staff. The table below lists common safety and surge protection features:

Feature Description
Surge Protection Network-grade AC surge and noise suppression with high joule ratings
Protection Modes Full normal (Hot-Neutral) and common mode (Neutral-Ground / Hot-Ground) protection
Circuit Breakers Resettable breakers (15A or 20A) to prevent overloads
Load Monitoring Built-in digital ammeter for real-time current/load monitoring
Switch Protection Transparent cover on lighted on/off switch to prevent accidental shutdown
Surge Response Time Fast response time, often as quick as 1 nanosecond
Clamping Voltage 140V
Housing Durable all-metal construction

These features work together to prevent damage from power surges, overloads, and accidental shutdowns. Real-time monitoring helps staff spot problems early and keep systems running smoothly.

Simplifying Regulatory Audits

Regulatory audits check if data centers follow safety and operational rules. Certified PDUs make audits easier. Auditors can quickly verify compliance by checking certification labels and documentation. Built-in monitoring and reporting features provide clear records of power usage and safety checks. Staff can show proof of regular maintenance and safe operation. This reduces the time and stress of audits.

Tip: Keeping certification documents and maintenance logs organized helps data centers pass audits with confidence.

Real-World Benefits and Case Studies of Vertical PDU

Data Center Space Optimization Example

Many data centers face challenges with limited rack space. Vertical PDUs fit vertically along the side of server racks, saving valuable horizontal space for IT equipment. This design allows organizations to maximize rack capacity and support high-density installations.

  • Data centers can power up to 60 devices in a single rack, which is ideal for environments with many servers.
  • The low-profile design improves cable management and airflow, which helps maintain optimal performance.
  • These units are widely used in facilities where space optimization is critical, such as cloud service providers and enterprise IT rooms.

By freeing up horizontal rack units, organizations can deploy more servers and network devices without expanding their physical footprint.

Improved Uptime and Reliability Case

Vertical PDUs contribute to higher uptime and reliability through advanced features. The following table highlights key benefits and their impact:

Feature/Benefit Explanation Impact on Uptime and Reliability
Surge Protection Protects equipment from voltage spikes and power surges Reduces downtime caused by electrical failures
Remote Management Enables remote monitoring and control of power distribution Improves maintenance response times by about 40%
Real-Time Monitoring Provides continuous data on power usage, temperature, and load Enables predictive maintenance, reducing mean time to repair by 31%
Load Balancing Distributes power evenly across devices Prevents overloads, reducing downtime incidents by up to 30%
Scalability and Modularity Supports high-density racks and future expansion Ensures compatibility and continuous operation as data center grows
Certification and Quality Compliance with standards like UL, CE, ISO9001 Helps achieve Tier 3 and Tier 4 uptime standards

These features help data centers reduce downtime, speed up repairs, and maintain continuous operation, even as demands increase.

Cost Savings Through Efficient Power Management

Organizations report significant cost savings after switching to vertical PDUs. High power quality reduces maintenance and repair costs by preventing equipment damage and downtime. This leads to lower operational expenses and extends the lifespan of critical devices. Intelligent power distribution and overload prevention help reduce energy consumption, which lowers electricity bills. Remote management capabilities decrease the need for on-site personnel, further reducing costs.

Switched PDUs allow operators to manage outlets remotely, which lowers maintenance expenses. Environmental monitoring helps maintain optimal conditions, reducing equipment failures. The vertical 0U form factor optimizes rack space, contributing to better space utilization and cost efficiency. These combined benefits make vertical PDUs a cost-effective solution for modern data centers.


A vertical PDU helps data centers solve rack space and power challenges. These units mount outside the main equipment area, saving space for servers and switches. Their design improves airflow and keeps cables organized, which reduces overheating risks.

  • They offer many outlets in a compact form, making it easy to connect more devices.
  • Locking outlets and tool-less mounting options improve safety and flexibility.
  • Real-time monitoring and remote control features support efficient operations.

Data centers that use vertical PDUs see better reliability, easier upgrades, and lower costs. This solution supports future growth and keeps equipment running smoothly.

FAQ

What is a vertical PDU?

A vertical PDU is a power distribution unit that mounts along the side or rear of a server rack. It saves rack space for IT equipment and supports high-density power needs.

How does a vertical PDU improve airflow?

Vertical PDUs have a slim design. They do not block airflow inside the rack. This helps cool air move freely and keeps equipment at safe temperatures.

Can vertical PDUs support different types of equipment?

Yes. Vertical PDUs offer many outlet types and voltage options. They can power servers, switches, storage devices, and other IT equipment in one rack.

Are YOSUN vertical PDUs easy to install?

YOSUN vertical PDUs feature tool-less mounting and flexible brackets. Technicians can install them quickly without special tools. This design saves time and reduces setup errors.

What safety features do YOSUN vertical PDUs include?

YOSUN vertical PDUs include surge protection, hydraulic-magnetic circuit breakers, and locking outlets. These features protect equipment from power issues and accidental disconnections.
