Which of these are the types of PDUs?

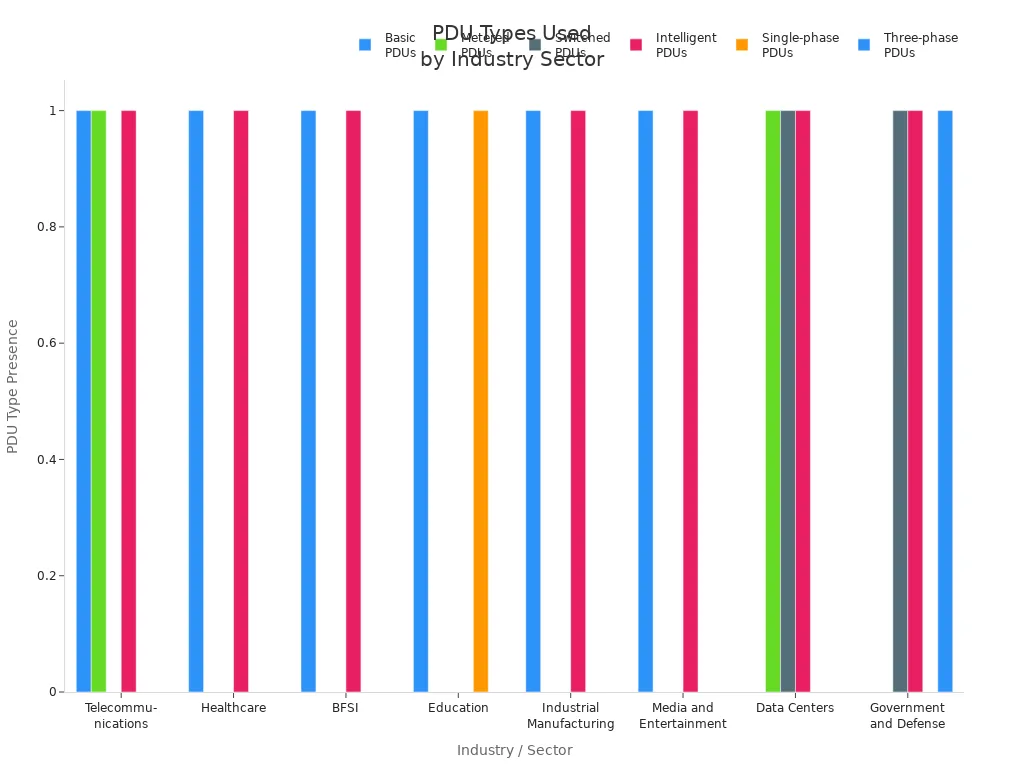

Power Distribution Units (PDUs) come in several types, each serving distinct power management needs. Basic PDU models hold the largest global market share, favored for cost-effectiveness in small setups. Industries like data centers and telecom increasingly choose switched and intelligent PDUs for advanced monitoring.

Key Takeaways

• Basic PDUs offer simple, reliable power distribution and are ideal for small or budget-conscious setups without advanced monitoring needs.
• Metered, monitored, and switched PDUs provide increasing levels of power monitoring and remote control, helping data centers improve energy efficiency and reduce downtime.
• Choosing the right PDU type depends on your environment’s size, monitoring needs, and control requirements to ensure efficient power management and future growth.

Main Types of PDUs

Basic PDU

A basic pdu serves as the foundation for power distribution in IT environments. This device acts as an industrial-grade power strip, distributing AC or DC power from a single source to multiple devices. Most basic pdu models are rack-mounted, saving valuable space in server rooms and data centers. They do not generate power or offer advanced control features. Instead, they focus on reliable and efficient power delivery.

Basic pdu units are primarily deployed in small-scale or budget-conscious environments, such as SMB data centers and enterprise racks. These units provide simple power distribution without monitoring or switching, making them ideal for cost-effective management in racks with lower power capacities. According to industry forecasts, basic pdu models make up nearly 40% of all units deployed globally in 2024, especially in small-scale enterprise racks.

Note: Basic pdu devices are best suited for environments where simplicity and reliability are the main priorities.

Metered PDU

Metered PDUs offer enhanced accuracy in energy metering, often within 1%. Facility managers use these units to monitor power consumption at the outlet or unit level. Metered PDUs display data such as voltage, current, and energy, helping prevent circuit overloads and optimize usage. Unlike basic pdu models, metered PDUs provide valuable amperage and power consumption data via a local display, aiding in load balancing and power management.

Metered PDUs do not support remote outlet control, but they may offer local or remote data access. These units are popular in environments that require visibility into power usage but do not need remote switching capabilities. Data center managers rely on metered PDUs to track power consumption, improve energy efficiency, and support operational reliability.

• Real-time monitoring of power consumption enables identification of energy savings opportunities.
• Outlet-level metering helps identify underutilized servers and allows accurate cost allocation.
• Circuit breaker monitoring enables quick identification and reset of tripped breakers.

Monitored PDU

Monitored PDUs provide advanced monitoring capabilities, including real-time and historical data, alerts, and some environmental sensing. These units enable remote access to detailed power data, supporting proactive maintenance and minimizing downtime. Monitored PDUs often integrate with centralized management platforms, allowing unified monitoring and firmware upgrades.

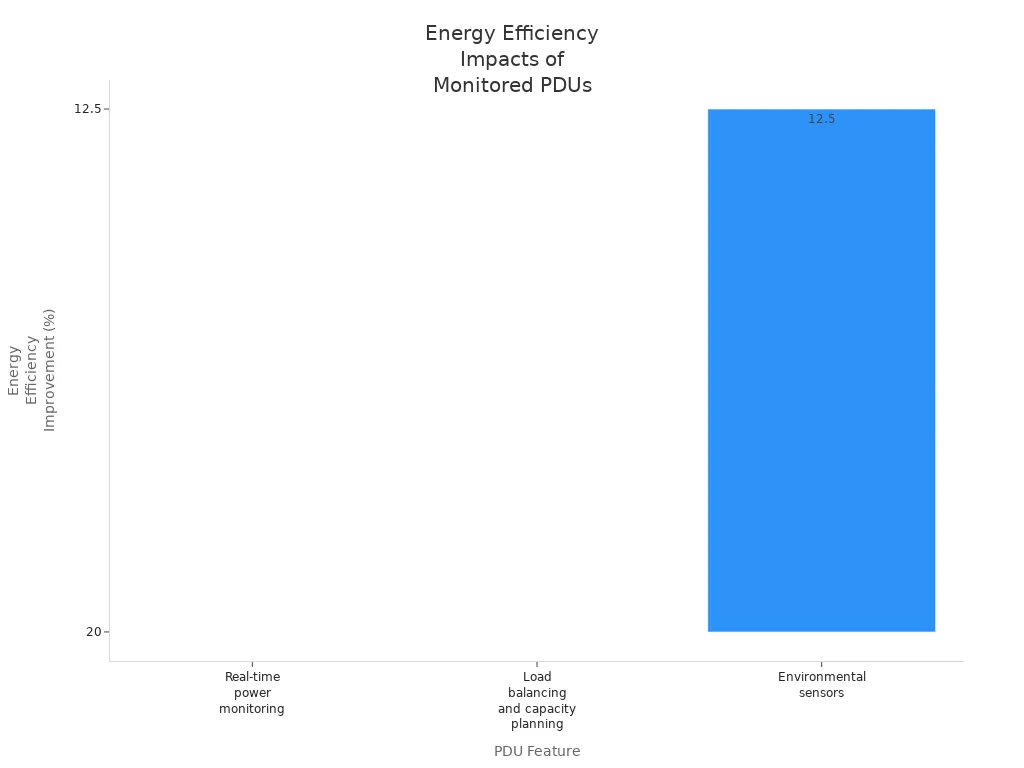

Monitored PDUs play a critical role in reducing energy waste and optimizing power use in enterprise data centers. Managers use these devices to remotely monitor power consumption, identify inefficient equipment, and receive alerts before capacity limits are reached.

Switched PDU

Switched PDUs combine the monitoring features of monitored PDUs with remote outlet-level control. These units allow users to power on, off, or reboot individual outlets remotely. Switched PDUs support multiple communication protocols, such as SNMP, HTTP, and Modbus, enabling seamless network integration. Environmental monitoring capabilities, including temperature and humidity sensors, help maintain optimal equipment conditions.

• Remote outlet-level control allows power cycling and rebooting of devices.
• Customizable power sequencing prevents power surges during equipment startup.
• Alarm and threshold alerts notify users of power anomalies or environmental changes.
• Cascading management features allow multiple PDUs to be linked and centrally controlled.

Switched PDUs are commonly used in server rooms and data centers to provide reliable and organized power distribution. IT professionals use these units to reduce downtime by remotely rebooting or power cycling devices, optimize energy usage, and maintain system reliability.

Specialized PDUs

Specialized PDUs address unique requirements in high-density, industrial, or medical environments. These units offer advanced monitoring, remote control capabilities, modular and scalable designs, and enhanced durability. Specialized PDUs often feature alternating and locking outlets for improved cable management and secure connections.

Specialized PDUs comply with certifications such as UL, CE marking, RoHS, and ISO 9001. They undergo rigorous testing to ensure durability and performance in harsh conditions. These units support compliance with industry-specific regulations, including REACH, EIA, ASHRAE, IEEE, FCC, and TIA-942 standards.

Tip: Specialized PDUs are ideal for environments with demanding operational needs or strict regulatory requirements.

Key Features and Differences

Intelligent vs. Non-Intelligent PDUs

Intelligent PDUs, often called smart PDUs, provide advanced features that support modern data center operations. These units offer network connectivity, enabling remote monitoring, management, and control. Key functions include metering for voltage, current, power, and energy, as well as remote on/off switching for individual outlets. Intelligent PDUs integrate with data center infrastructure management (DCIM) systems and environmental sensors, giving operators real-time insights and control.

Non-intelligent PDUs, such as basic and monitored models, focus on reliable power distribution. Basic PDUs act as industrial-grade power strips without monitoring or remote control. Monitored PDUs may display power information locally but lack network access. Intelligent PDUs deliver operational advantages in capacity planning, energy efficiency, and remote management—features critical for growing data centers.

• Intelligent PDUs: Network connectivity, remote monitoring, metering, outlet control, DCIM integration.
• Non-intelligent PDUs: Reliable power distribution, no remote access, limited or no monitoring.

Rack-Mount vs. Floor-Mount PDUs

Rack-mount PDUs install horizontally or vertically within server racks. Vertical models maximize outlet density, sometimes supporting up to 60 devices, while saving valuable rack space. Horizontal PDUs consume rack units but offer easy access for smaller setups. These units support modular upgrades, such as adding remote monitoring or sensors, and often feature hot-swappable components for simplified maintenance.

Floor-mount PDUs stand alone on the data center floor. They supply high power levels, sometimes exceeding 300kVA, and suit industrial or large commercial environments. Floor-mount units prioritize robust construction and safety, but they offer less modularity and require more space than rack-mount options.

TAA-Compliant and Universal PDUs

TAA-compliant PDUs meet strict government procurement standards. Manufacturers must produce or substantially transform these products in the United States or a designated country. TAA compliance ensures eligibility for federal contracts and supports supply chain transparency.

Universal PDUs adapt to international power standards. They use seven-pin connectors and support multiple input cable types, making them suitable for global deployments. These units comply with safety and operational standards such as UL, CE, and ROHS, ensuring reliable operation across different regions and power configurations.

Selecting the right PDU type ensures reliable power distribution and operational efficiency.

• Organizations should match capacity, outlet type, and monitoring needs to their environment.
• Proper planning prevents overloads, supports future growth, and reduces energy costs over time.

FAQ

What is the main difference between basic and intelligent PDUs?

Basic PDUs distribute power reliably. Intelligent PDUs provide remote monitoring, control, and advanced data features for improved management.

Can a rack-mount PDU support both vertical and horizontal installation?

A rack-mount PDU supports either vertical or horizontal installation. The choice depends on rack design and available space.
