Your Guide to Picking the Perfect Rackmount PDU for Data Center Efficiency

Selecting the correct rackmount PDU plays a crucial role in maintaining reliable data center operations. Power distribution issues account for a significant portion of outages, with PDU failures alone responsible for 11% of downtime.

Modern energy-efficient PDUs, equipped with advanced monitoring and smart control, help reduce energy waste and support sustainability goals. Data centers that invest in intelligent power management solutions improve operational efficiency and equipment protection.

Key Takeaways

• Calculate total power needs carefully and add 20-30% extra capacity to handle future growth and avoid overloads.
• Choose three-phase PDUs for high-density racks to improve power stability, efficiency, and cost savings over single-phase options.
• Select PDUs with voltage compatibility that matches your facility and equipment to ensure safe and efficient operation.
• Use vertical (Zero-U) PDUs to save rack space and maintain good airflow, or horizontal PDUs for easier outlet access depending on your setup.
• Consider advanced PDUs with monitoring and remote control features to prevent downtime, optimize energy use, and simplify management.

Rackmount PDU Power Requirements

Assessing Power Capacity

Selecting the right rackmount PDU begins with a thorough assessment of power capacity. Data center managers must calculate the total power load for all equipment in each rack, including servers, switches, and cooling devices. They should use both nameplate ratings and actual consumption data to ensure accuracy. Most enterprise data centers rely on common amperage values, such as 20 amps for 120V circuits or 30 amps for power whips. For high-density racks, 208V three-phase PDUs may offer 30A or 60A options, with higher amperage units requiring specialized cabling and installation.

Modern data centers face rising power densities, with average rack loads increasing from 2.4 kW in 2011 to 8.4 kW in 2020. Some racks now exceed 25 kW, especially in environments supporting AI or high-performance computing. To accommodate these demands, managers should add 20-30% headroom above current requirements, allowing for future expansion and preventing costly rework. Balancing electrical loads across circuits and phases is essential to avoid overloads and maximize efficiency.

Tip:

Always follow the 80% rule—never exceed 80% of the PDU’s rated capacity. This practice ensures safety, reliability, and compliance with electrical codes.

A practical checklist for assessing power capacity includes:

1. Summing the wattage of all connected devices.
2. Adding extra capacity for growth.
3. Matching the number and type of outlets to equipment needs.
4. Ensuring redundancy with dual power sources or N+1 configurations.
5. Selecting mounting options that optimize rack space and airflow.
6. Incorporating monitoring and remote management features for proactive oversight.

Single-Phase vs. Three-Phase Rackmount PDU

Choosing between single-phase and three-phase rackmount PDUs depends on the data center’s power density and operational requirements. Single-phase PDUs suit low-power setups, such as small offices or edge deployments. They offer simpler installation and lower initial costs but have limited load capacity and efficiency.

Three-phase PDUs dominate modern data centers due to their ability to deliver consistent, stable power to high-density racks. These units support larger loads, improve energy efficiency, and reduce voltage drops. They also require less conductor material, which lowers installation costs over time. Industry reports show that three-phase systems accounted for about 72% of the power quality equipment market revenue in 2023, reflecting their widespread adoption in large-scale facilities.

Three-phase rackmount PDUs also enable better load balancing across phases, which is critical for maximizing current capacity and maintaining operational headroom. Intelligent PDUs can monitor phase imbalances and alert managers before issues arise, further enhancing reliability.

Voltage Compatibility

Voltage compatibility plays a crucial role in selecting and deploying rackmount PDUs, especially for global data centers. North American facilities typically use 120V single-phase or 208V three-phase power, while European and Asian data centers often operate at 230V single-phase or 400V three-phase. The choice of voltage affects power density, cable size, and connector costs.

Rackmount PDUs must support the voltage standards of the facility and the connected equipment. For example, IEC320 C13 and C19 outlets are common internationally and support up to 250V output. Selecting a PDU with the correct voltage compatibility ensures safe, efficient operation and simplifies global deployment.

Note:

Always verify voltage compatibility with both the facility’s power supply and the IT equipment to prevent damage and ensure optimal performance.

Rackmount PDU Mounting Orientation

Vertical (Zero-U) vs. Horizontal (Rackmount) Options

Data centers often choose between vertical (Zero-U) and horizontal (rackmount) PDUs based on rack layout and equipment needs. Vertical PDUs, also known as Zero-U, mount along the side or rear of the rack. This orientation preserves valuable horizontal rack space for servers and switches. Many vertical PDUs offer a high outlet count, supporting dense equipment installations. Horizontal rackmount PDUs, on the other hand, fit into standard rack units (1U or 2U) and install across the width of the rack. These units work well in racks with limited vertical space or when fewer outlets are required.

Mounting orientation directly influences airflow and cooling efficiency. When PDUs align with rack airflow patterns, equipment fans can pull cool air from the cold aisle and exhaust hot air into the hot aisle. This setup maintains optimal cooling and prevents equipment from drawing in hot exhaust air. Incorrect orientation disrupts this airflow, causing fans to recirculate hot air and raising temperatures for other devices. Rack-based cooling systems with proper PDU placement create shorter, well-defined airflow paths, supporting higher power densities and reducing fan power consumption.

Space Optimization and Accessibility

Efficient use of rack space remains a top priority in modern data centers. Vertical PDUs maximize available rack units by occupying unused space along the rack’s edge. This approach allows more servers and network devices to fit within the same rack footprint. Horizontal PDUs, while consuming some rack units, provide easy access to outlets on the front or rear of the rack. Technicians can quickly connect or disconnect equipment during maintenance.

Accessibility also plays a key role in PDU selection. Vertical PDUs often feature color-coded outlets and clear labeling, simplifying load balancing and cable management. Good cable management, combined with blanking panels, minimizes airflow obstructions and prevents hotspots. Proper rack orientation and PDU placement, especially in hot aisle/cold aisle configurations, further enhance cooling performance and reduce operating costs. Computational Fluid Dynamics (CFD) analysis can help optimize rack and PDU placement, ensuring efficient airflow and easy access for maintenance.

Rackmount PDU Plug and Outlet Selection

Matching Plugs to Facility Power

Selecting the correct plug type for a rackmount PDU ensures compatibility with the facility’s power infrastructure. Data centers often rely on standardized connectors to streamline installation and maintenance. The most common plug types include IEC320 connectors, especially the IEC C13 and C14, which are widely used for connecting servers and network equipment. NEMA plugs also appear frequently in North American facilities, but IEC connectors dominate globally due to their versatility.

When choosing plugs, data center managers should consider the following:

• Locking power cables with locking receptacles help prevent accidental disconnections, which can cause downtime.
• Two main locking systems exist: P-Lock (vendor-specific) and A-Lock (universal).
• Cable length should be sufficient to reach equipment without excess slack, maintaining proper airflow.
• Compliance with standards such as UL, cUL, RoHS, and REACH ensures safety and reliability.

Matching the PDU’s input plug to the facility’s power source is essential. This step guarantees that the PDU operates safely and delivers consistent power to all connected devices.

Choosing Outlet Types for Equipment

A rackmount PDU must support the diverse power needs of modern data center equipment. Outlets should match the plugs used by servers, switches, and storage devices. IEC C13 and C19 outlets are the most prevalent, accommodating a wide range of IT hardware. Some PDUs offer color-coded outlets to simplify load balancing and circuit management.

Key considerations for selecting outlet types include:

1. Identify all devices in the rack to determine the required outlet types and quantities.
2. Choose between horizontal (1U/2U) or vertical (0U) PDUs based on rack layout and available space.
3. Plan cable routing and power inlet location for efficient installation and cable management.
4. Select outlets with locking or retention features to reduce the risk of accidental unplugging.
5. Consider advanced features such as environmental monitoring, network connectivity, and color coding to differentiate power feeds.

Many rackmount PDUs support modular or customizable configurations, allowing data centers to adapt to changing equipment needs. Network equipment often uses dual power cords, connecting to separate PDUs for redundancy and uninterrupted operation. Planning for extra outlets supports future expansion and helps maintain balanced loads across circuits.

Rackmount PDU Monitoring and Control Levels

Basic Rackmount PDU Features

Basic rackmount PDUs deliver reliable power distribution for standard IT environments. These units focus on durability and straightforward operation. They do not include monitoring or switching capabilities, making them ideal for network closets and server rooms where remote management is unnecessary. Most basic models offer standard outlet configurations and robust safety features such as surge protection and overload prevention. Brands like APC, Tripp Lite, and Eaton provide basic PDUs in both vertical and horizontal form factors. These units integrate easily into racks and offer a cost-effective solution for simple power needs.

Note: Basic PDUs suit environments where power distribution is the primary concern, not remote oversight or advanced control.

Metered Rackmount PDU Capabilities

Metered rackmount PDUs add a layer of visibility to power management. These units feature real-time current monitoring, often displayed on a local digital screen. Operators can view aggregate current draw, which helps prevent overloads and supports load balancing. Many models include alarm thresholds that trigger visual or network alerts when power usage approaches unsafe levels. Remote management becomes possible through secure web, SNMP, or Telnet interfaces. Some metered PDUs also support environmental monitoring with sensor ports for temperature and humidity. Enhanced circuit protection and locking IEC receptacles further improve safety and reliability.

Monitored Rackmount PDU Advantages

Monitored rackmount PDUs provide comprehensive power visibility and proactive management. These intelligent units enable real-time metering at the rack or outlet level. Data center managers receive alerts for power abnormalities or overloads, allowing early intervention to prevent downtime. Remote monitoring capabilities let operators access power usage data from anywhere, supporting rapid response to unusual conditions. Advanced models integrate with centralized management platforms, offering detailed analytics for energy optimization and load balancing. Monitored PDUs help facilities improve power usage effectiveness (PUE) and maintain high reliability, especially in high-density environments.

Tip: Monitored PDUs empower IT teams to make informed decisions, optimize energy use, and prevent costly outages.

Switched Rackmount PDU Control

Switched rackmount PDUs deliver advanced power management for modern data centers. These units allow administrators to control individual outlets remotely, providing a new level of flexibility and security. With switched PDUs, teams can power cycle devices, schedule startups, and manage energy use without setting foot in the server room.

Key operational benefits of switched rackmount PDUs include:

• Remote outlet control lets administrators turn specific outlets on or off from anywhere. This feature supports precise remote power cycling and control.
• Power sequencing enables staggered equipment startups. By powering devices in sequence, data centers prevent inrush currents and avoid power surges during initialization.
• Remote reboot capabilities streamline troubleshooting. Teams can reboot unresponsive devices instantly, reducing downtime and eliminating the need for onsite visits.
• Integration with Data Center Infrastructure Management (DCIM) systems supports automated and scheduled power management. This integration enables dynamic control of power usage and enhances operational efficiency.
• Advanced API support allows automation and dynamic power control. Administrators can script power management tasks, reducing manual intervention and improving response times.
• Security features such as role-based access and secure communication protocols protect critical power operations. Only authorized personnel can make changes, ensuring compliance and safety.

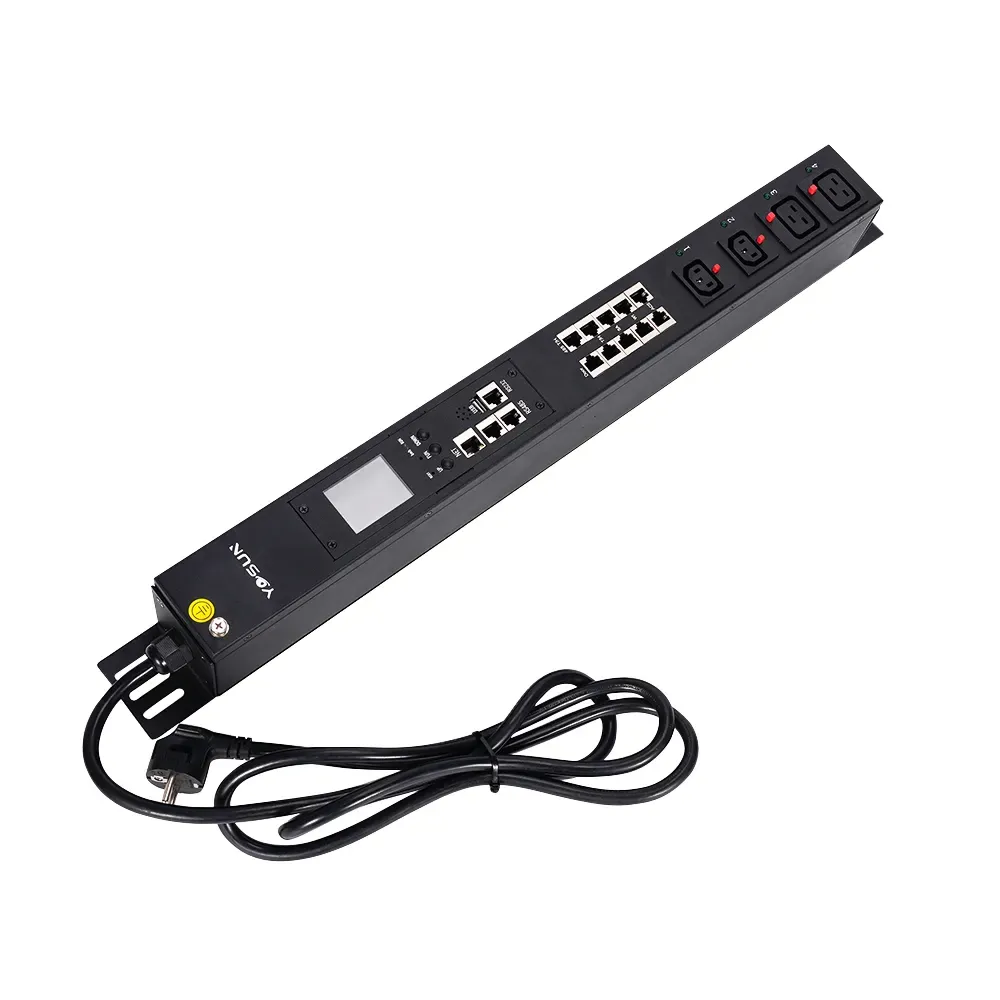

Switched rackmount PDUs, like those from YOSUN, offer group reboot functionality for A and B power feeds. This feature simplifies the management of redundant power supplies. Remote management tools reduce the need for physical access, saving time and minimizing risk. These capabilities help optimize energy usage, improve uptime, and support rapid response to power events.

Tip:

Switched PDUs provide the highest level of control and automation for data center power management. They help IT teams maintain uptime, respond quickly to issues, and support efficient operations.

Additional Rackmount PDU Features

Surge Protection and Safety

Surge protection stands as a critical feature in modern rackmount PDUs. Data centers face risks from power surges, lightning strikes, and electrical faults. Surge-protected PDUs shield sensitive IT equipment from voltage spikes, which can cause data loss or permanent hardware damage. Many advanced PDUs include built-in circuit breakers and overload protection. These safety mechanisms disconnect power during dangerous events, reducing the risk of fire or equipment failure. YOSUN Rackmount PDUs meet strict international safety standards, including GS, CE, and ULBS certifications. This commitment to safety ensures reliable operation in demanding environments.

Environmental Monitoring Integration

Environmental monitoring integration transforms a standard PDU into a proactive management tool. Operators can install sensors that track temperature, humidity, and airflow inside server racks. This real-time monitoring provides several benefits:

• Sensors alert operators immediately if temperature or humidity exceeds safe thresholds, preventing overheating and condensation.
• Early detection of anomalies, such as power spikes or temperature fluctuations, enables swift intervention and reduces unplanned downtime.
• Continuous monitoring helps maintain optimal conditions, extending hardware lifespan and lowering maintenance costs.
• Integration with DCIM software and remote management platforms enhances visibility and supports timely responses to potential issues.
• By preventing hotspots and power imbalances, these PDUs help maintain stable operating conditions critical for equipment reliability.

YOSUN’s monitored and switched PDUs support environmental sensors, giving data center teams the tools to prevent failures before they occur.

Remote Access and Management

Remote access and management features have become essential in today’s data centers. Modern rackmount PDUs support a range of remote access protocols, including SNMP, Modbus, HTTP, HTTPS, and RS485. These protocols enable seamless integration with network systems and allow administrators to monitor and control PDUs from any location. Browser-based interfaces use HTTP and HTTPS for secure, user-friendly management. Remote capabilities reduce the need for on-site visits, streamline troubleshooting, and support rapid response to power events. With these features, data center teams can maintain uptime and optimize energy use with confidence.

Rackmount PDU Reliability, Brand, and Support

Build Quality and Certifications

Build quality forms the foundation of a reliable rackmount PDU. Manufacturers demonstrate their commitment to safety and performance through internationally recognized certifications. UL Listed certification confirms that a PDU meets strict U.S. electrical safety standards, reducing risks of fire and electric shock. CE marking ensures compliance with European health, safety, and environmental regulations. ISO9001 certification verifies that the manufacturer follows consistent quality management processes. RoHS restricts hazardous substances, supporting environmental safety. VDE certification further validates electrical safety and dependable operation.

These certifications help ensure that rackmount PDUs deliver consistent performance and minimize downtime in critical environments.

Warranty and Technical Support

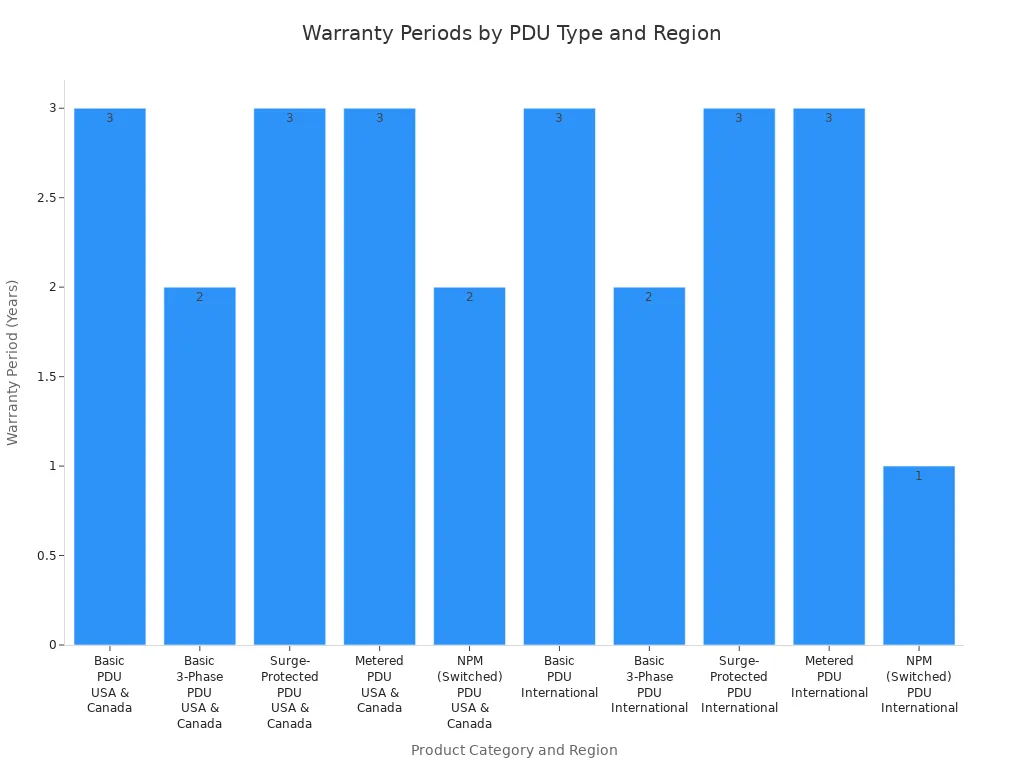

Warranty coverage and technical support play a vital role in long-term reliability. Leading manufacturers offer warranties ranging from one to three years, depending on the PDU type and region. For example, basic and metered PDUs often come with a three-year warranty, while switched models may have shorter coverage. Most warranties require product registration within a short period after purchase and cover defects in materials and workmanship for the original owner.

Responsive technical support ensures that data center teams can resolve issues quickly. Brands with strong support networks help minimize downtime and maintain operational continuity.

Brand Reputation and Customer Reviews

Brand reputation and customer feedback provide valuable insight into PDU reliability. Top-rated brands such as APC, Eaton, Vertiv Geist, Tripp Lite, CyberPower, Raritan, and NBYOSUN consistently receive positive reviews for features like surge protection, overload prevention, and remote monitoring. Customers highlight the importance of robust construction, customization options, and comprehensive warranties.

Brands that combine advanced features with responsive support and strong warranties earn the trust of data center professionals worldwide.

Practical Tips for Choosing a Rackmount PDU

Comparing Models and Specifications

Selecting the right rackmount PDU requires a careful comparison of models and specifications. Data center professionals often follow a structured approach to ensure the best fit for their environment:

1. Assess current and projected power needs to guarantee sufficient capacity.
2. Identify the number and type of outlets required, such as C13, C19, or NEMA 5-15R, to match connected devices.
3. Check input plug types and power phases for compatibility with facility infrastructure.
4. Evaluate redundancy options for high-availability setups.
5. Review monitoring and control features, from basic to fully managed PDUs.
6. Consider the form factor and available rack space.
7. Examine environmental factors, including temperature and humidity tolerance.
8. Confirm compliance with safety standards and electrical codes.
9. Look for surge protection and circuit breakers to safeguard equipment.
10. Plan for scalability and modularity to support future growth.
11. Assess remote management capabilities for operational efficiency.
12. Evaluate cable management and heat dissipation features.
13. Ensure easy accessibility for maintenance.
14. Consider energy efficiency and power consumption monitoring.
15. Weigh the benefits of managed PDUs, which offer real-time monitoring and remote control.

Tip:

A side-by-side table comparing these features can simplify the decision process and highlight key differences.

Planning for Future Expansion

Forward-thinking data center managers plan for growth by focusing on capacity and flexibility. They select PDUs with advanced technologies like High Density Outlet Technology (HDOT) and Per Outlet Power Sensing (POPS) to monitor power at a granular level. This approach allows for precise configuration of outlets and phases, supporting scalability and preventing power bottlenecks. Managers also choose PDUs with hybrid or combo outlets to accommodate a variety of devices. Selecting the correct input cord length and ensuring remote monitoring capabilities help maintain uptime as the data center expands. These strategies ensure the PDU can adapt to changing power demands and device diversity.

Budget and Value Considerations

Total cost of ownership (TCO) plays a significant role in PDU selection. Basic PDUs offer the lowest upfront cost but lack monitoring and management features, which can increase operational expenses over time. Metered PDUs add monitoring capabilities, helping to identify inefficiencies and reduce energy costs. Monitored and switched PDUs provide remote access and control, reducing downtime and maintenance costs, though they require a higher initial investment. Brands that offer modular scalability, advanced monitoring, and strong warranty support often justify their higher price by delivering long-term savings and reliability. Data center teams should balance initial investment with operational efficiency, energy savings, and support to achieve the best value.

Selecting the right rackmount PDU involves several essential steps:

1. Assess compatibility with existing hardware and management systems.
2. Prioritize remote monitoring and control for operational efficiency.
3. Choose reliable vendors with strong support and regular updates.
4. Schedule routine maintenance to extend PDU lifespan.
5. Opt for granular power management and outlet-level control.

Aligning PDU features with specific data center needs ensures stable power delivery, reduces downtime, and supports efficient energy management. This approach enables data centers to adapt, scale, and maintain high reliability in demanding environments.

FAQ

What is the difference between a basic and a switched rackmount PDU?

A basic PDU distributes power without monitoring or control. A switched PDU allows remote control of individual outlets. Switched models support power cycling, outlet scheduling, and remote troubleshooting, which improves uptime and operational efficiency.

How does a vertical (Zero-U) PDU save rack space?

A vertical PDU mounts along the rack’s edge. This placement preserves horizontal rack units for servers and switches. Data centers can increase equipment density and maintain easy access to power connections.

Why is surge protection important in a rackmount PDU?

Surge protection shields sensitive equipment from voltage spikes. It prevents data loss and hardware damage. Reliable surge protection ensures continuous operation and reduces the risk of costly downtime.

Can a rackmount PDU support both single-phase and three-phase power?

Most rackmount PDUs support either single-phase or three-phase power, not both in one unit. Data center managers must select a PDU that matches the facility’s power infrastructure and equipment requirements.

How does remote monitoring benefit data center operations?

Remote monitoring provides real-time visibility into power usage and environmental conditions. It enables proactive management, quick response to issues, and reduces the need for on-site visits. This feature helps maintain uptime and optimize energy use.
