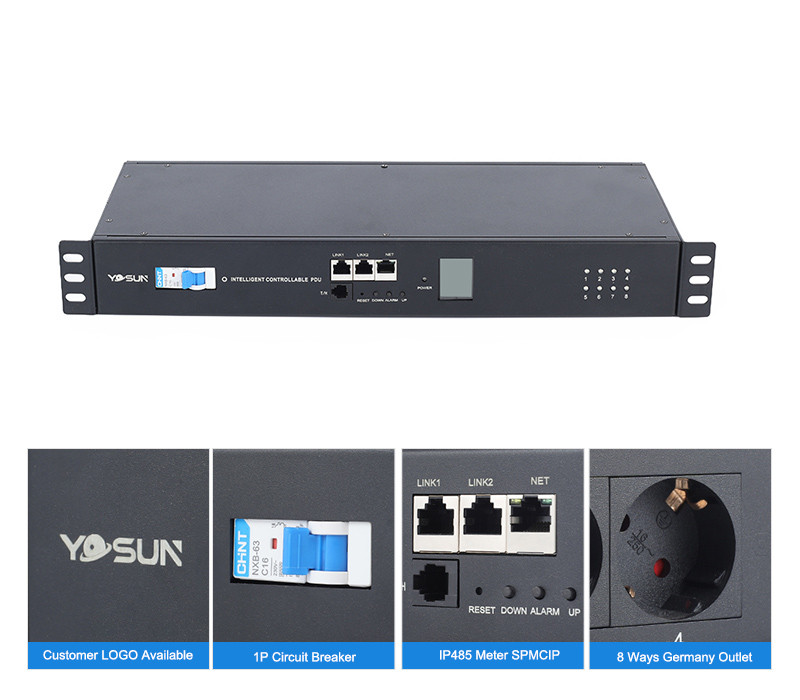

German switched IP 483mm 8 ways rack pdu in computer networks

Short Description:

Ningbo YOSUN’s PDU YS1008SPIP-GER Single-Phase Monitored/switched PDU is an efficient, cost-effective power distribution solution with remote monitoring capabilities. Its 8 German outlets are organized into two separate breakered load banks that can be monitored remotely or locally via the unit’s digital ammeter. Designed for users who prefer a IP interface, this PDU uses 16A single-phase input to distribute 240V single-phase output. The 10 ft. cord has a German plug and also support OEM.The reversible all-metal housing supports a variety of mounting options, including 1U horizontal or vertical mounting in standard 19-inch racks, under a counter or on a wall or workbench.


  • Model: YS1008SPIP-GER
  • Product Detail

    Process Production

    Product Tags

    Features

    1.MONITORED PDU: 16A single-phase power distribution unit with built-in network management delivers AC power and remote voltage & load level monitoring in real time. Ideal solution for small to mid-sized data centers, computer rooms or high-density network closets.
    2.INDIVIDUALLY MONITORED 8 OUTLETS: 1U 19inch horizontal PDU features 8 total German 16A 230V outlets to distribute power and can be individually & remotely monitored with IP SNMP network interface.This model equipment a 16A circuit breaker to protect the pdu.
    3.Support TCP/IP. RS-485 hybrid networking, flexible and diverse networking schemes, users can flexibly choose any scheme according to their own needs,Support WEB upgrade system, the latest software functions can be obtained.
    4.LCD screen supports rotatable display in 4 directions, suitable for both horizontal
    and vertical installation.The smart Power Strip support 19 inches Rack 1U horizontal installation, with 4pcs cassette nuts and crown screws, you can easily fix it.

    details

    1)Size:19" 483*180*45
    2)Color: black
    3)Outlets – Total :8
    4)Outlets Plastic Material:antiflaming PC module French
    5)Housing material:Aluminium alloy
    6)Feature:IP switched
    7)Amps: 16A /customized
    8)voltage:250V
    9)Plug:EU /OEM
    10)Cable length:custom length

    Support

    1 2 3 4
    Terminal block(≤32A) 10A-32A 125/250VAC Junction Box(≤32A) 10A-32A 125/250VAC 1U Junction Box(High-power) 10A-63A 125A/400VAC 1.5U Junction Box(High-power) 10A-63A 125A/400VAC
    5 6 7 8
    Overload Protection 10/16A 250VAC Illuminated Master Switch10A/16A 125VAC / 250VAC Overload Switch10A/16A 125VAC / 250VAC Buzzer DC 24V / 36V / 48VAC 110V / 220V
    9 10 11 12
    Earth Leakage Circuit Breaker C10/16/32/63A 1P Circuit BreakerC10/16/32/63A 2P Circuit BreakerC10/16/32/63A 3P Circuit BreakerC10/16/32/63A
    13 14 15 16
    100A/125A 3P Circuit BreakerC100A/125A 2P Circuit BreakerC10/16/32/63A USB Charger 2 * Type A5V 2.1A USB Charger Type A+Type C5V 2.1A / 3.1A / fast charging
    17 18 19 20
    Power indicator125V/250VAC 50/60Hz Hot-swap Power Indicator125V/250VAC 50/60Hz Single-Lamp Surge Protector4.5KA/6.5KA/10KA 250VAC 50/60Hz Three-Lamp Surge Protector(Filtering and surge protection)10KA 250VAC 50/60Hz
    21 22 23 24
    Hot-swap Surge protector4.5KA/6.5KA/10KA 250VAC 50/60Hz Hot-swap V/A Meter Hot-swap 485 Smart Meter Hot-swap Smart IP Meter
    25 26 27 28
    Intelligent PDU Meter Foroutlet monitor and control  10A Universal Socket10A 250VAC 16A Universal Socket16A 250VAC 10A Chinese Socket 5 holes
     29 30  31 32
    10A Chinese Socket 16A Chinese Socket Chinese 10A/16A Socket 10A locking Chinese Socket
    33 34 35 36
    16A locking Chinese Socket IEC320 C13(Anti-trip) 10A 250VAC IEC320 C13 10A 250VAC IEC320 C19(Anti-trip) 16A 250VAC
    37 38  39 40
    IEC320 C19 16A 250VAC 16A German Socket16A 250VAC 16A French Socket16A 250VAC 16A GER.ITA Socket16A 250VAC
    41 42  43 44
    13A UK Socket13A 250VAC 15A USA Socket15A 125VAC 20A USA Socket20A 125VAC IEC320 C14 16A 250VAC
    45 46 47 48
    IEC320 C20 16A 250VAC 16A ZA Socket16A 250VAC IEC320 C13(2 Ways in one Socket)10A 250VAC IEC320 C13(3 Ways in one Socket)10A 250VAC
    49 50 51 52
    10A 250VAC 10A Chinese Plug 16A Chinese Plug IEC60309 IP44-Male(Three Core) Commando plug16A/32A/63A 250VAC
    53 54 55 56
    IEC60309 IP44-Female(Three Core) Commando plug16A/32A/63A 250VAC IEC60309 IP44-Male(Five Core) Commando plug16A/32A/63A 250VAC IEC60309 IP44-Female(Five Core) Commando plug16A/32A/63A 250VAC UK BS1363 Plug13A 250VAC
    57 58 59 60
    German Plug16A 250VAC USA Plug15A 125VAC IEC320 C14 Plug10A 250VAC IEC320 C13Plug10A 250VAC
    61 62 63 64
    South Africa Plug16A 250VAC IEC320 C20 Plug16A 250VAC IEC320 C19 Plug16A 250VAC AUS Plug
    65
    66

    Optional Toolless Installation

    67

    Customized shell colors available

    YOSUN PROCESS PRODUCTION

    Ready For Material

    91d5802e2b19f06275c786e62152e3e

    Cutting Housing

    2e6769c7f86b3070267bf3104639a5f

    Automatic cutting of copper strips

    laser marking

    Laser Cutting

    649523fa30862d8d374eeb15ec328e9

    Automatic wire stripper

    Riveted copper wire

    Riveted copper wire

    injection molding machine

    Injection Moulding

    COPPER BAR WELDING

    Spot welding of copper strips
    Spot welding of copper strips (2)

    The internal structure adopts the integrated copper bar connection, advanced spot welding technology, the transmission current is stable, there will be no short circuit and other situations

    INSTALLATION AND INTERIOR DISPLAY

    Monolithic copper bar

    Built-in 270°insulation

    An insulating layer is installed between the live parts and the metal housing to form 270.

    All-round protection effectively blocks the contact between the electrical components and the aluminum alloy housing, improving the safety level

    Install the incoming port

    The internal copper bar is straight and not bent, and the copper wire distribution is clear and clear

    PVC绝缘板

    BATCH PDUS ARE COMPLETE

    high powered pdu

    FINAL TEST

    Each PDU can be delivered only after the current and voltage function tests are performed

    Current resistance voltage test
    eebe95fc1f0098497a2d627d5e520a1

    DETAIL ANALYSIS

    Function PDU Modules_2
    different PDU Modules_1

    PACKAGING

    详情16
